The Complete Guide to T-Grid Suspension Systems

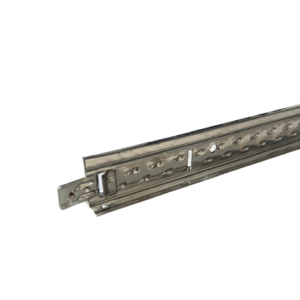

• Main Tee:

The primary structural backbone suspended by hanger wires, designed to carry the majority of the ceiling load.

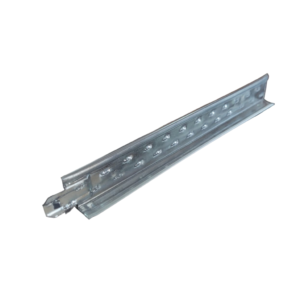

• Cross Tee (60, 120):

Interlocking members that snap into the main runners to create the modular grid pattern.

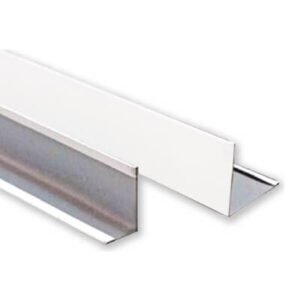

• Wall Angles:

Perimeter trims that provide a clean edge finish while supporting grid ends along surrounding walls.

• Hanger Wires: The load-transfer link between the structural slab and the grid, ensuring the ceiling remains level, secure, and code-compliant.

Understanding how these elements connect enables contractors to install faster and helps dealers stock complete system solutions.

Choosing the correct profile directly impacts durability, appearance, and project suitability.

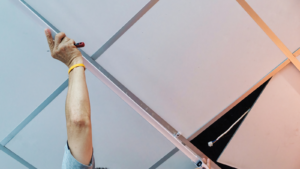

Efficient installation depends on proper planning, accurate measurement, and structural awareness.

1. Start with Laser Alignment

Always establish the perimeter level using a rotary laser level. Even small deviations at the start can create alignment drift across the ceiling, making tile installation difficult and visually inconsistent.

2. Follow the 12-Foot Stagger Rule

Never align cross-tee slots directly across adjacent main runners. Staggering the runners improves load distribution and strengthens the grid’s structural integrity across large spans.

3. Confirm Fire & Safety Compliance

Verify hanger wire spacing, fire ratings, and load classifications according to UAE building standards and project specifications to avoid inspection failures and rework.

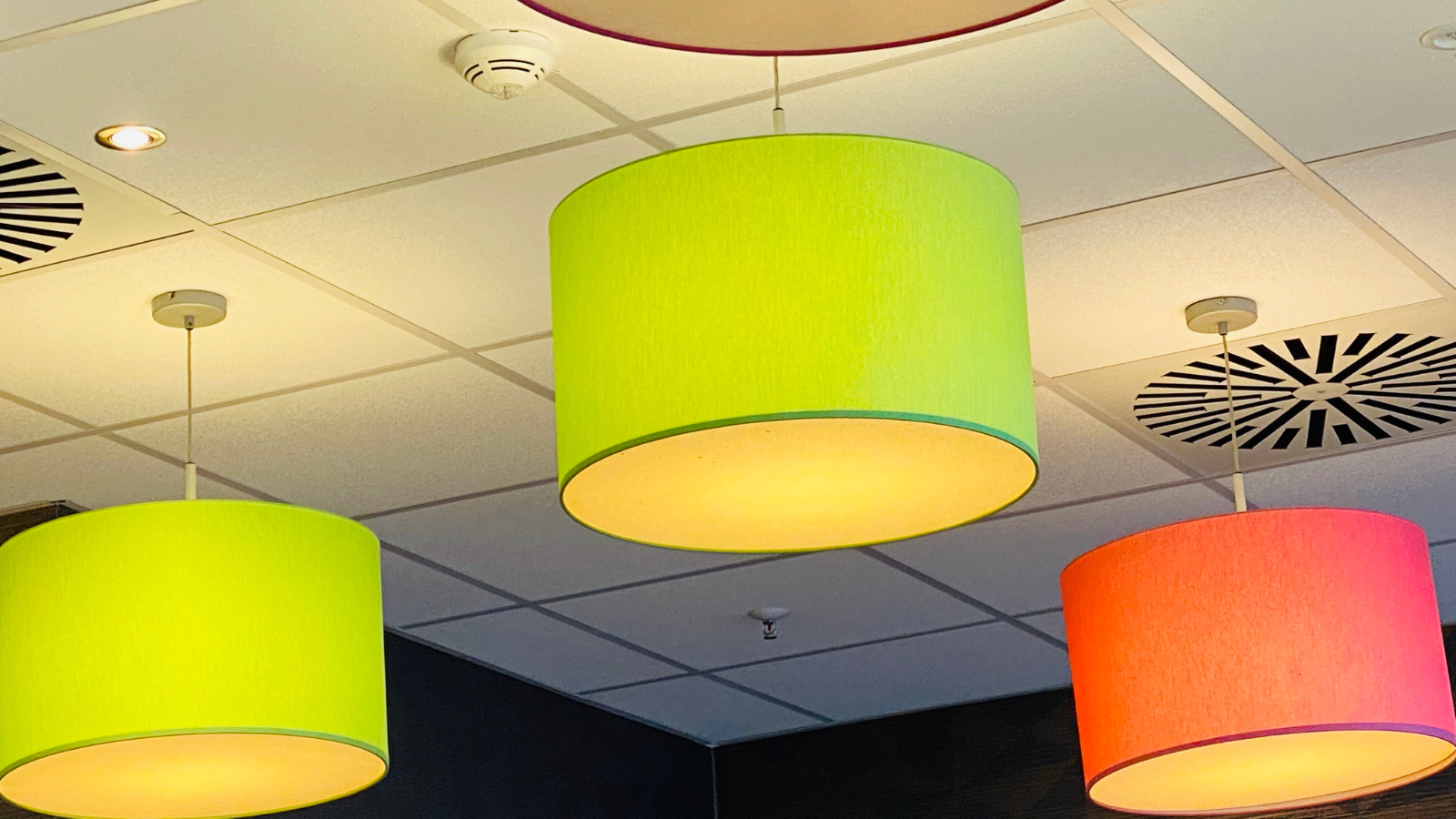

4. Plan for Heavy Fixtures

Lighting panels, diffusers, and access panels add extra weight. Use additional hanger wires or independent supports for heavy MEP fixtures to prevent sagging and long-term deformation.

Understanding the components is one thing—but sourcing them from a reliable manufacturer is what keeps projects on schedule. At Brosco Metal Industries, we support contractors and dealers all across the UAE with dependable supply and precision-engineered ceiling suspension solutions.

• 48-Hour Delivery Across UAE: Our in-house logistics fleet ensures your T-Grid systems, channels, and studs reach your job site on time, preventing costly delays.
• Direct-to-Factory Value: Our Bromat range is manufactured locally in Ajman, eliminating middlemen and giving contractors professional-grade steel profiles at competitive pricing.
• Engineered for Precision: Manufactured to strict dimensional tolerances, Bromat T-Grid systems deliver secure snap-lock connections that ensure faster installation and perfectly aligned ceilings.

Whether your project requires Main Channels, Furring Channels, or a complete T-Grid suspension system, Brosco Metal Industries provides the stock depth and manufacturing reliability needed to keep projects moving without interruption.

Can I mix different T-Grid brands on the same project?

No — avoid mixing brands. Different manufacturers use unique locking mechanisms and tolerances. If components don’t fit perfectly, the grid may sag, look uneven, or fail inspections. Always use one brand consistently across the entire project.

How do I make sure the room layout is perfectly square?

Use the 3-4-5 rule: measure 3 feet along one wall and 4 feet along the adjoining wall. The diagonal between those points should be exactly 5 feet. If it’s not, the room isn’t square, and your grid alignment will be compromised.

15/16″ vs. 9/16″ Grid — which one should I choose?

• 15/16″ (Wide): The standard option. Stronger, more economical, and suitable for most commercial and industrial projects.

• 9/16″ (Narrow): Provides a sleek designer look and is typically chosen for high-end interior spaces where aesthetics are a priority.

Are all metal T-Grid systems fire-rated?

No. Metal construction does not automatically mean fire-rated. Always check for certified fire-rating labels on the packaging. If the system is not clearly marked as fire-rated, it should not be used in commercial environments where compliance is mandatory.
